應用范圍：

模切各種形狀的單、雙面不干膠、保護膜、墊片、防塵網以及銅鋁箔等產品，應用于手機、手提電腦、掌上電腦、數碼相機、音響等電子產品中的前后殼、視窗、顯示器、話筒、聽筒、鍵盤、電池等部分以及標簽等的印后模切,尤其是對多層復合的產品，一次成型，效果明顯，高速高效。

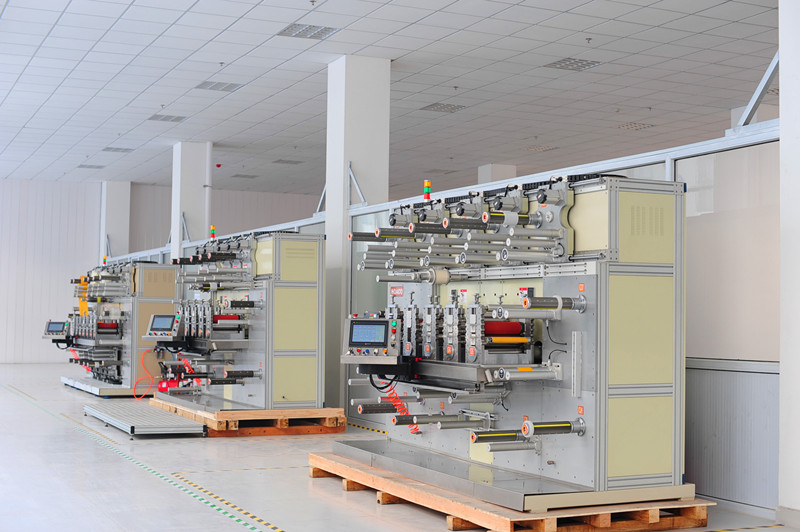

ROTARY DIE CUTTING MAHINE APPLICATION:

 Copper and alumInum foil and other products, used in mobile phones, laptops, PDA, digitalCamera,sound and other electronic products before and after the shell,Windows, display,microphone.the receiver.keyboard batteries,and part of the labels,and after printing die cutting, especially to the multilayer composite products,a molding,the effectis obvious,high speed and high efflcient.

機械結構優點：

一、主放料和主收料氣漲軸采用固定結構，其余收放料軸采用可移動結構。該結構最大的優點是

1、可以根據產品工藝需要，將對應收放料軸移動到與刀座入口最佳的角度位置，減小材料變形，保證產品質量；

2、可有效減少導向軸數量；

3、更換刀具或刀座檢修時可以將上層氣漲軸移動到某一側，增加操作空間。

二、刀座結構進行了優化設計，傳動底座與支架板安裝精度更高，并方便拆卸維修。

三、模切底軸（砧輥）兩端軸承盒采用新型結構，安裝后能保證底軸（砧輥）Y向竄動量小于0.02毫米，從而確保模切Y向套準精度。

四、氣漲軸采用多瓦片式漲開方式，與鍵條式氣漲軸比較能減小料卷漲開偏心誤差，保證轉動平穩。

五、張力控制選用科學合理的橋式測力結構，使得料帶張力檢測及控制更為精確。

六、機械零部件大量選用鋁合金及不銹鋼材料，對設備使用環境要求降低，尤其是我國南方潮濕多雨的地區不會出現銹蝕等影響產品精度的缺陷。

MECHANlCAL STRUCTURAL ADVANTAGES:

 1. Arelease axis and the receiving axis up the fixed structure,and the rest of axises use potable structure. This structure is the biggest advantage:

 ①.Can according to product process needs, the account will be feeding shaft move to and withhis sword the best Angle position a entrance,reduce material deformation,guarantee productquality.

 ②.Reducelhe number of axial direction;

 ③.Replace tools or knife a maintenance can be up to the upper air shaf move a side ,increaseoperation space

 2. Knife a structure  optimization design,transmission base and suppod plate installation higher accuracy.and remove the maintenance convenlence

 3. Die cutting the axis (anvil does roll) ends with new structure bearing box, after the installation can ensure the shaft (anviI does roll )Y  there momerdum to less than 0.02 mm ,so as to ensum that die cutting Y to alignment precision

 4. Gas up axis adopt more tiles up open type way ,and key type gas up axis is article can reduce material roll uP open eccentric error, ensure smooth rotation

 5. Tension control choose scientific and reasonable bridge type measu ring force structure,make strip lension fesf and control mere accurately

 6.Mechanical parts of alummum alloy and stainless steel material selection of equipmentto reduce the use environment,especially in the south of moistu re in the rain will not appear on the accuracy of the corrosion defects products.

電氣控制優點：

一、操控更靈活：生產線上每一個氣脹軸均可自由設定為原料軸（放料軸）、廢料軸（收廢料軸）或成品軸（收成品軸），通過觸摸屏可方便實現啟動、停止和改變旋轉方向。每個模切工作站可根據產品工藝要求設定為主站，可隨時改變旋轉工作方向或停止工作。

二、套準更精確穩定: 保持工作站縱向穩定無偏差，使套準更精確；所有的氣脹軸均由最先進的張力傳感器控制，可隨時調整不同材料所需的不同張力，確保材料復合貼合、裁切尺寸正確，可確保所有工作站的裁切精度在±0.15mm以內。

三、手動或自動調節更精確：采用更先進的電氣運算控制方法，使每一個模切工作站手動或自動調節刀具的套準更精確。

四、主控、伺服驅動：每一個模切工作站均由同系主控、伺服電機驅動，保證系統整體運行響應統一性，從而使產品精確模切,并可根據客戶實際工藝要求開發功能塊程序。

五、操作臺采用可滑動+旋轉式結構，方便操作人員在不同工位操作。

ELECTRlCAL CONTROL ADVANTAGES:

1. Contro more flexible production Iine every air expansion shaft all can set freely as raw materialaxis(feeding shaft),waste axis(accepl waste axis)or products axis(the finished product axis) through the touch screen is easy to effect stad stop and change the direction of rotation .Each die cutting workstations product process requirement set according to give priority to stand，may at anytime change direction or stop rotating work.

2. Alignment more precise stable：keep the workstation longitudinal stability withoul deviation，make more accurate alignment；All the air expansion shaft all by the most advanced tension sensor control can adjust different materials required diffe renttension，ensure that materials composite Joint cutting proper size can ensure that all of the cutting precision workstalions inwithin+/0.075mm

3. Manual or automatic adjustment more accurate：the more optimized electrical operation control method to make eve ry die cutting workstation manual or automaticadjustment tool set must be more  precise

4. Master，seato d rive：every die cutting workstations are of the same master，seato motor drive Ensure  the whole running system response unity thusmakethe product precise die cutling and may according to the customer request development function blocks practical process  procedure.

5. The work station slide+rotary structure，convenient operation personnel in different location operation
